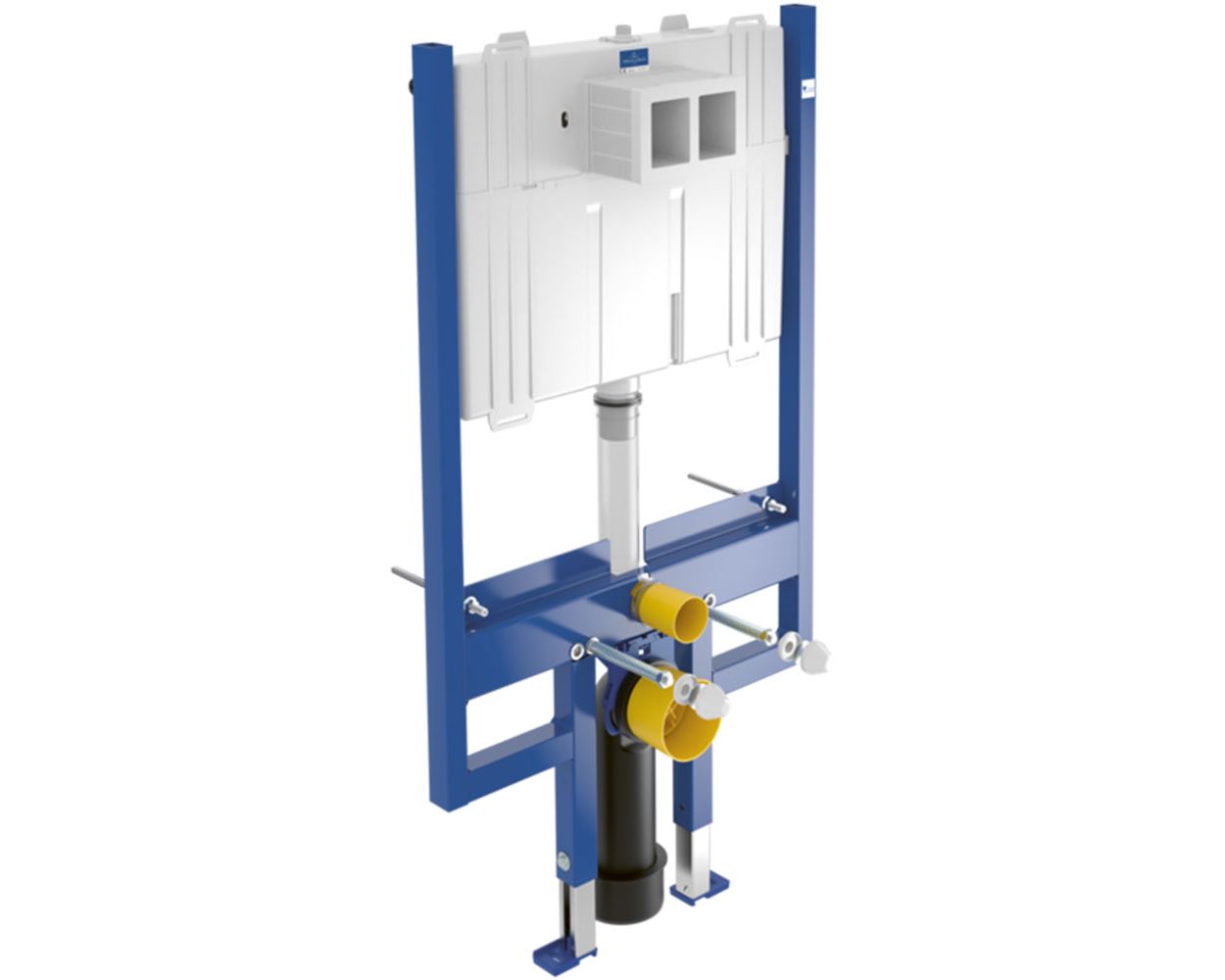

Villeroy & Boch ViConnect 1120mm Compact Toilet Frame

SKU

92247600

Qty

Total Price: £318.36

Toilet frame 1120mm

Compact toilet frame for wall-mounted toilet
Self-supporting
Front operated
Powder coated steel frame
Solid brick or dry-wall installation
Easy connection to flush plate
Adjustable feet 0-200mm
135-205 mm (when actuated from above 155-205 mm)
Easy connection to flush plate via flexible cables with bayonet joint

Cistern

Concealed cistern CE tested in accordance with EN 14055EN 14055
With filling valve type AG (air gap) WRAS compliant
Concealed cistern insulated against condensation water
With dual flush (7.5-4.5 l / 4-2 l), maximal flush quantity 4/7,5 l, factory setting 6/3 l
Filling valve Noise Class I
Adjustable flush flow control for adaptation to rimless toilet bowls

Scope of delivery

Installation system
Cistern 6/3l, 4/7,5l
Installation kit
PE toilet connecting bend DN 90 (Ø 90) with reducing sleeve DN 90 (Ø 90) / DN 100 (Ø 110) with protection plugs
Complete WC connection set DN 90 (Ø 90) / 180 mm
2-part angle valve connection set R1/2
Drain bend clamp
4 adjustment settings

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Overview

VICONNECT DRY-WALL TOILET INSTALLATION SYSTEMS FROM VILLEROY & BOCH

Villeroy & Boch’s proven ViConnect installation systems are easy to handle, quick to install and exceptionally stable. They offer very flexible adjustment options and the large contact surfaces allow easier cladding. Together with the timelessly designed flush plates, ViConnect offers a single-source, complete and reliable solution for any construction scenario – even for retrofitting.

Key Features

More Information
Weight	14.000000
Country of Manufacture	Germany
Warranty	2 Years
Width	635mm wide
Height	1120mm high
Mounting	Concealed
Frame & Flush Plate Type	Toilet Frame
